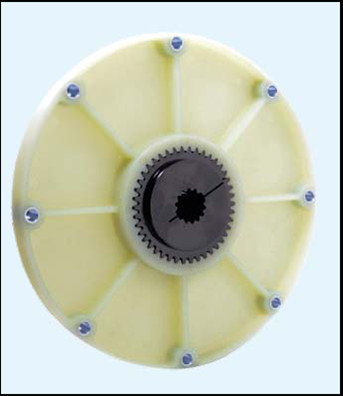

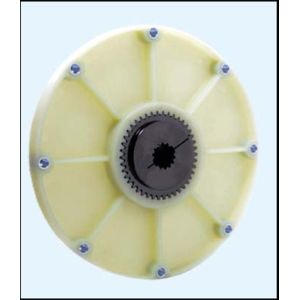

Flexible SAE Flywheel Coupling Nylon Flanges for Combustion Engine

Ask Lasest Price
Brand Name :	REIJAY
Model Number :	Construction Engine Coupling/ RB Nylon Flanges LK100 10"/ Flywheel Coupling FL
Certification :	ISO9001/ ITS16949
Price :	Negotiable
Payment Terms :	Negotiable
Supply Ability :	Negotiable
Delivery Time :	Negotiable

Add to Cart

Product Details
Company Profile

Flexible SAE Flywheel Coupling Nylon Flanges for Combustion Engine

Technical Specifications

SAE Standard Flywheel Parameter
Size	Bolt Mounting Center Circle D1 (mm)	Outer Diameter D (mm)	Bolt Hole Diameter (mm)	Bolt Hole Quantity
7 _1/2"	200.02	215.90	9	6
7 _1/2"	222.25	241.30	9	8
8"	244.47	263.52	11	6
10"	295.27	314.32	11	8
11_1/2"	333.37	352.42	11	8
14"	438.15	466.72	14	8

Size	Bolt Mounting Center circle D1 (mm)	Outer Diameter D (mm)	Bolt Hole Diameter Quantity (mm)	Location Dimension
96	50	96	4x8	70
125	100	125	3x8	80
135	100	135	3x8	135
150	130	150	5x8	106
152	122	152	3x12	105
155	125	155	3x12	155
210	185	210	3x10	125
220	165	220	6x10	220
220	185	220	3x12	125
170	140	170	3x14	170
209	165/170	209	6x16/3x16	209

RB series FL Flywheel Coupling Technical Parameter
Size	Prebore (mm)		Dimension (mm)							Special Length	SAE size						Axial	Radial	Angular
Size	Min.	Max.	B	D2	L1	L2	L3	L4	L5	L1 max. (mm)	6_1/2"	7_1/2"	8"	10"	11_1/2"	14" *	max. Offset (mm)
42	20	42	65	100	42	35	42	20	13	60	X	X	X	X			±1	±0.4	±1°
48	20	48	68	100	50	43	50	20	13	60	X	X	X	X				±0.4
65	25	65	96	132	55	49	55	27	21	70	—			X				±0.6
65	25	65	96	172	55	46	55	31	22	70	—				X			±0.6
80	30	80	124	172	55	46	55	30	21	90	—				X	X		±0.8
100	38	100	152	265	70	78	70	35	21	110	—	—	—	—	X	X

Our Strategic Partners

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.

FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment

Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters

Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.

Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.

Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
